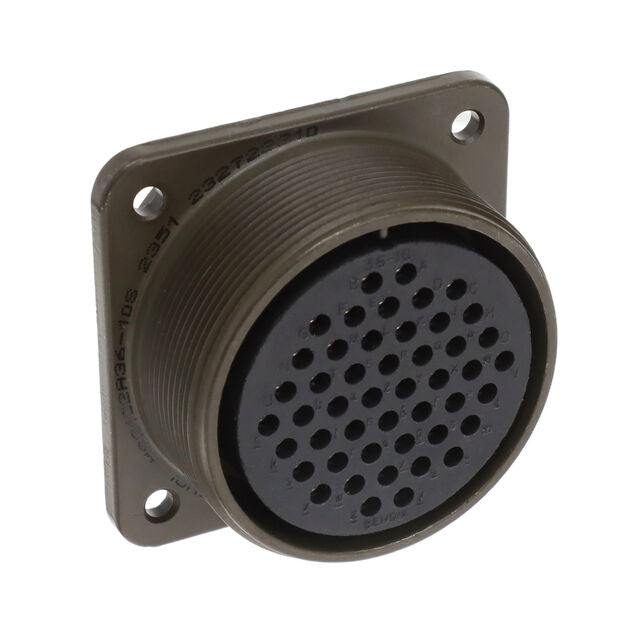

MS3102A36-10S
$108.00
48 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
| Manufacturer | MS3102A36-10S | Series | MS |
| Packaging | Bulk | Connector type | Receptacle, Female Sockets |
| Number of positions | 48 | Qualification | MIL-DTL-5015 |
| Shell size insert | 36-10 | Mounting type | Panel Mount |
| Mounting feature | Flange | Termination | Solder Cup |
| Fastening type | Threaded | Orientation | N (Normal) |
| Primary material | Metal | Shell material | Aluminum Alloy |
| Shell finish | Olive Drab Chromate over Cadmium | Contact finish mating | Silver |
| Color | Olive Drab | Ingress protection | - |
| Cable opening | 2.062" (52.37mm) | Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy | Insert material | Neoprene |
| Applications | Marine, Military |
